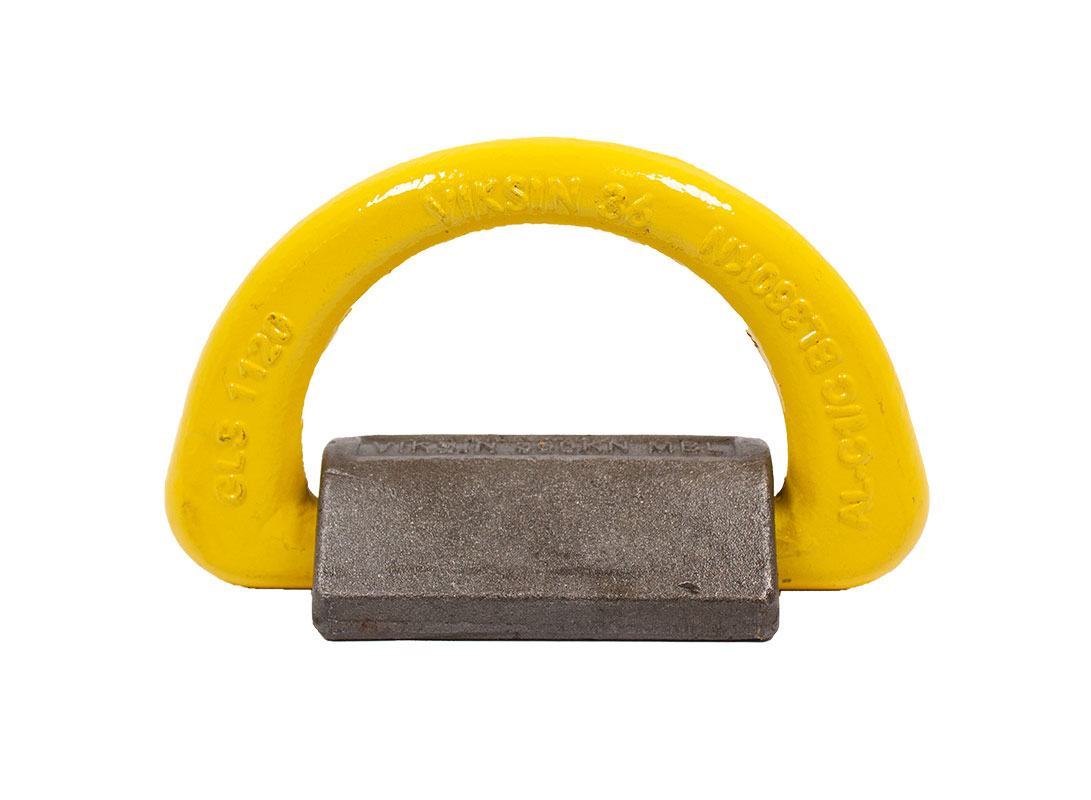

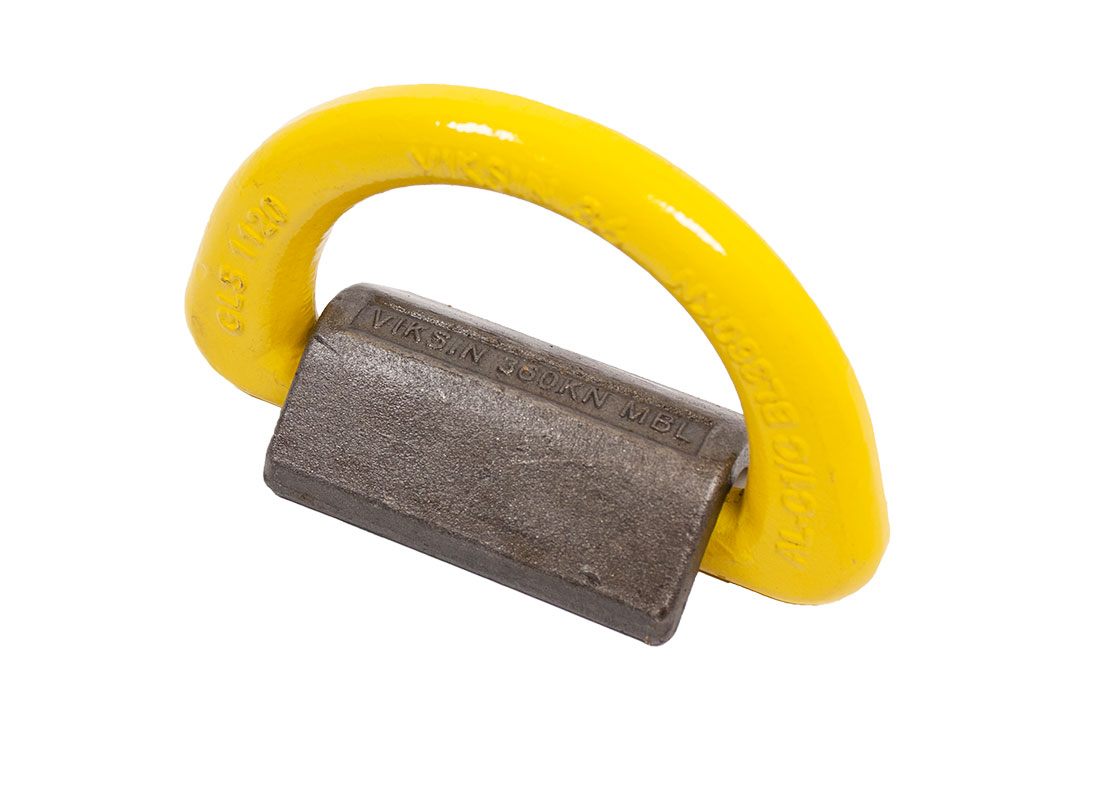

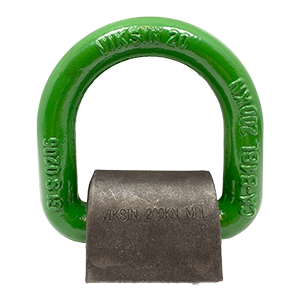

Sveisbart D-ring sett (D-Ring + Sveisefeste) / Weldable D-ring set (RING + CAP)
Smidd D-ring med batch / Forged Steel Ring with batch
Pulverlakkert farge, galvanisert eller selv farget / Powder coated color, galvanized or self colored
Varmsmidd sveisefeste med 45° avfasing og indikasjon på styrke (ikke 10t) / Hot forged Cap with 45° chamfering and indication of strength (not 10t)
Produkt nr. | Dim./mm | Bruddlast/t | Surrestyrke/t |
DH-5 | 19 | 10 | 5 |

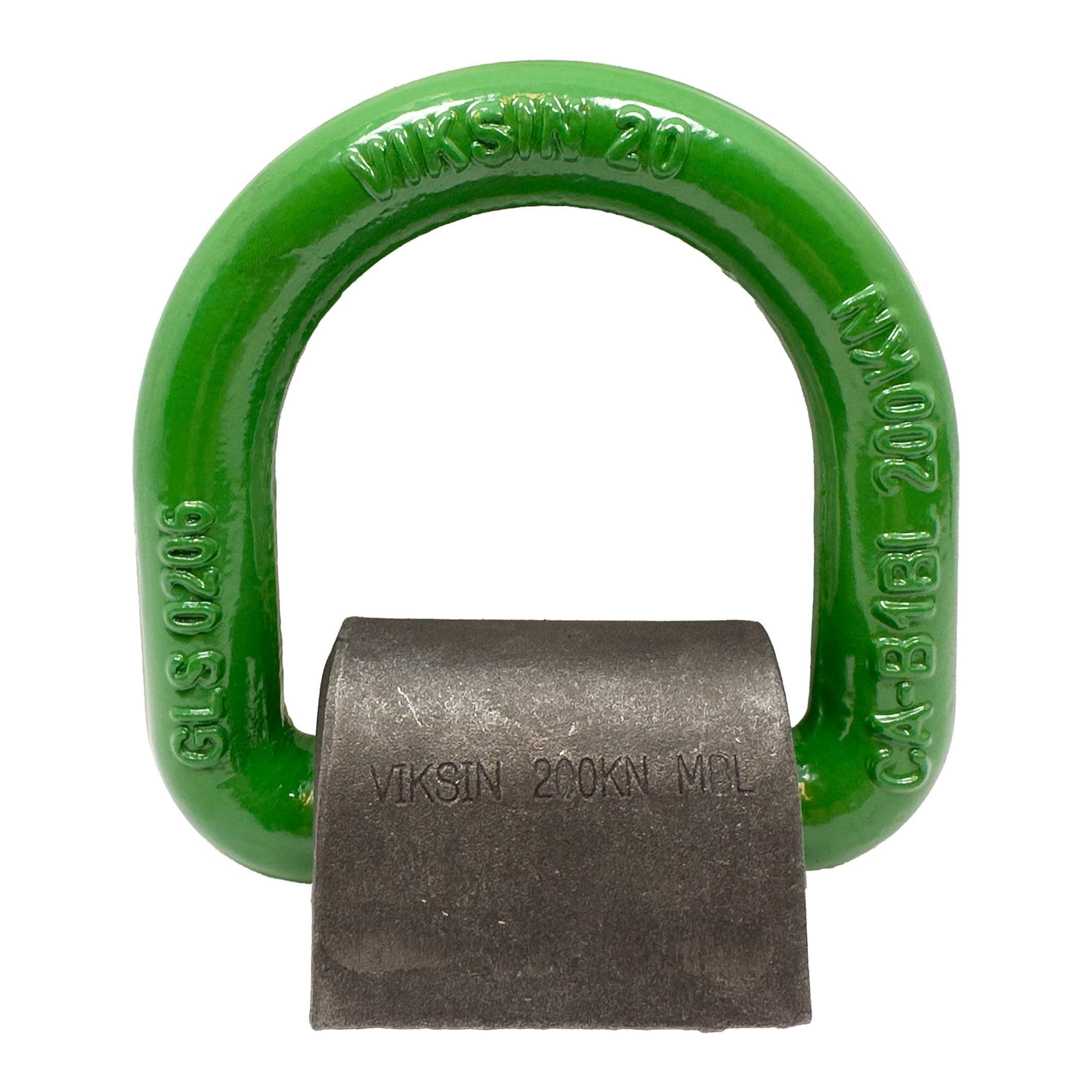

CA-B1 | 20 | 20 | 10 |
D-ring MBL 36t | 21 | 36 | 18 |
RL02-1002 | 27 | 50 | 25 |
Produkt nr. | Type | Bruddlast/kN | |

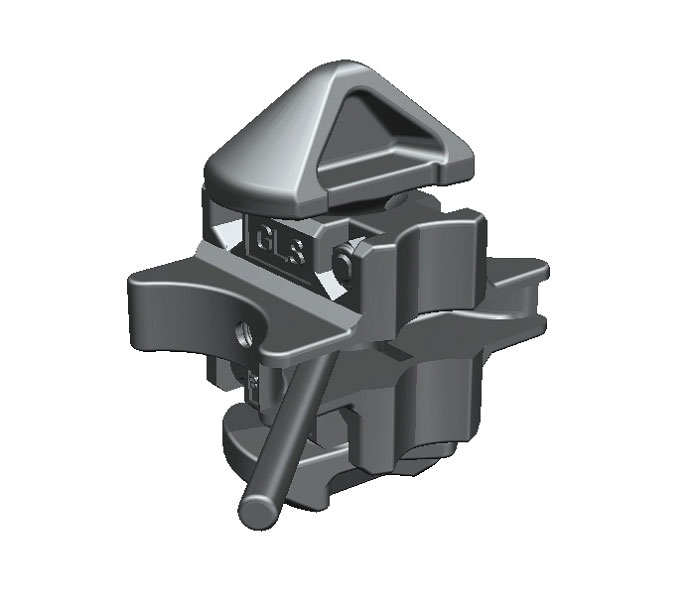

BD-A2/L | Manuell Twist Lock | 500 | ![]() |

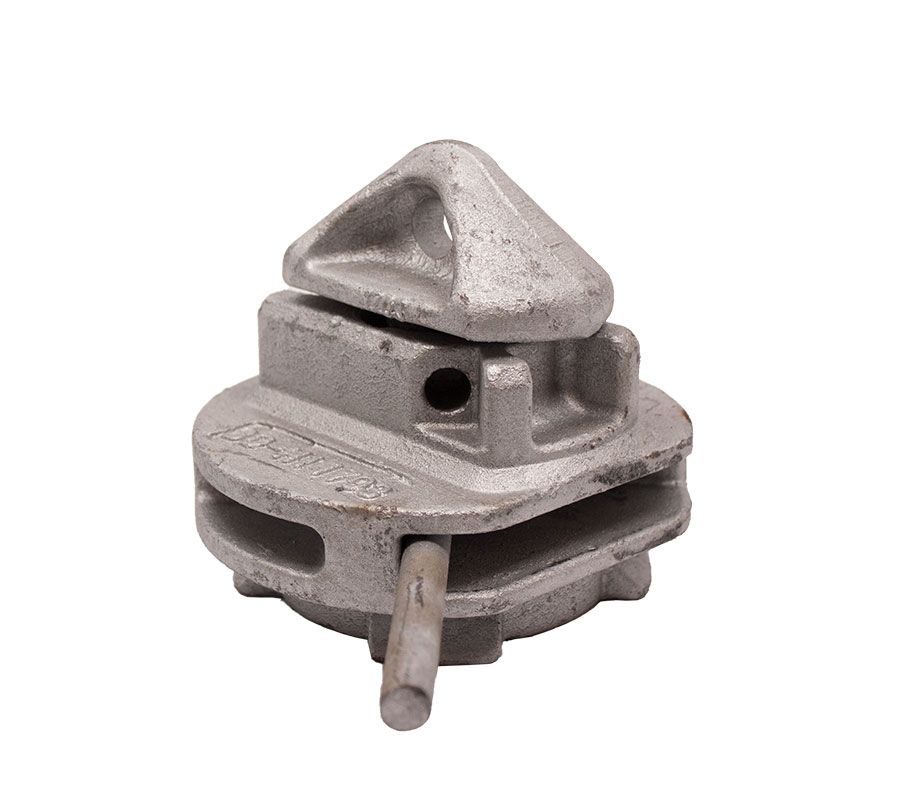

BD-H1/R | Breech Base Twistlock | 500 | ![]() |

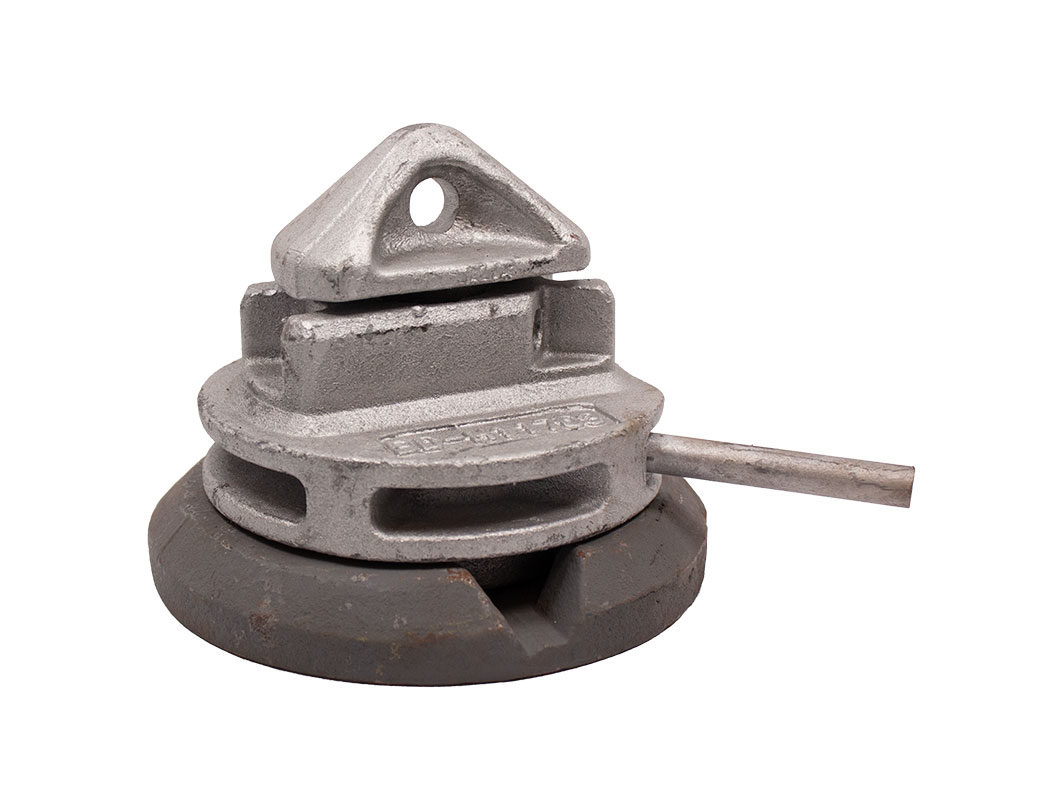

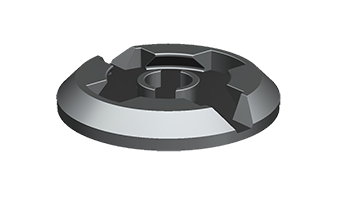

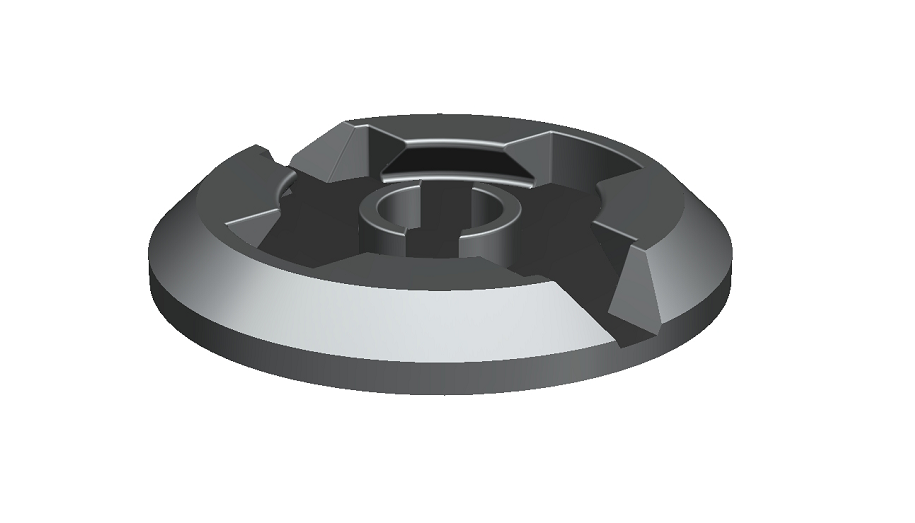

AH-A1 | Breech Base Foundation | 500 | ![]() |

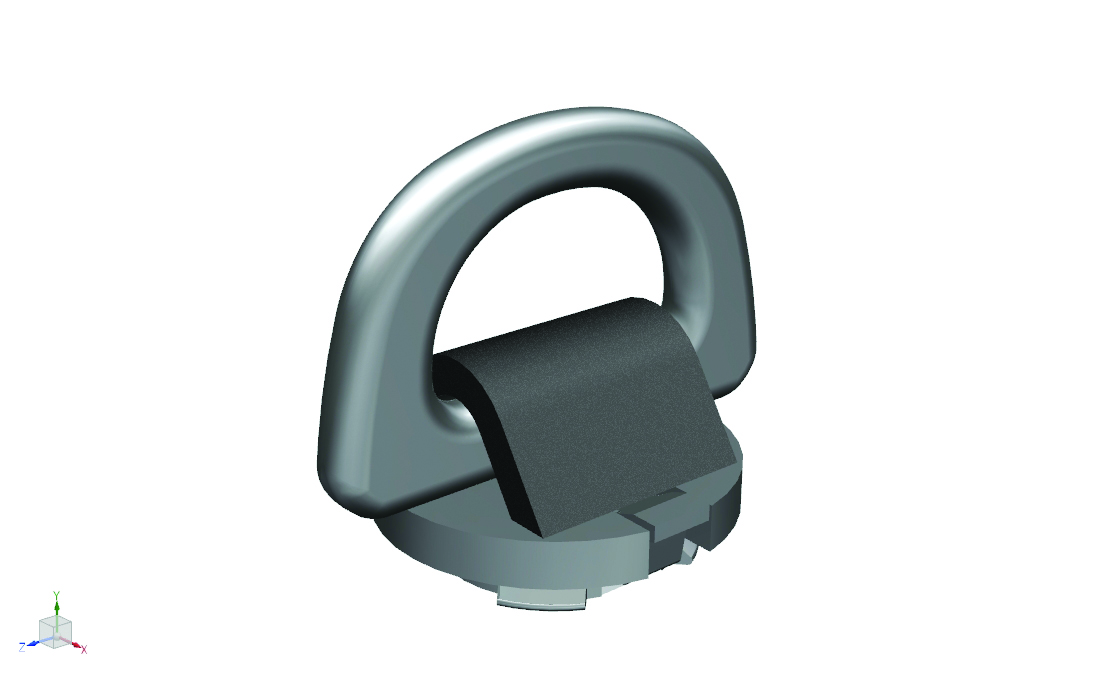

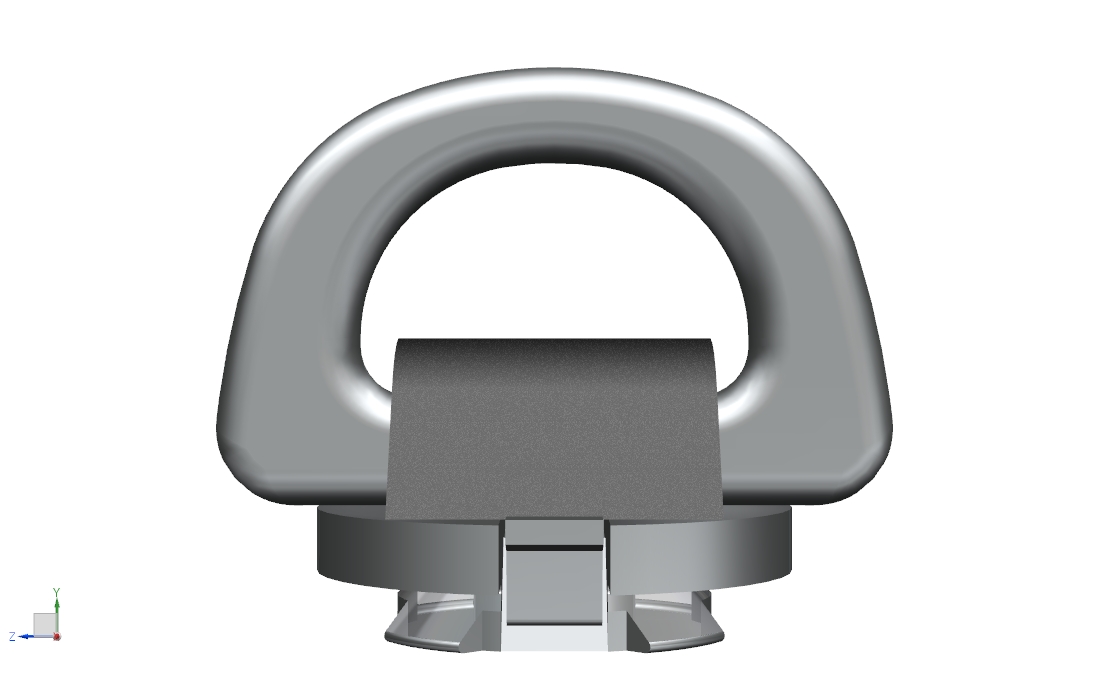

AL-J1/36T / AL-J1/50T | Breech Base D-Ring 36/50t | 360/500 | ![]() |

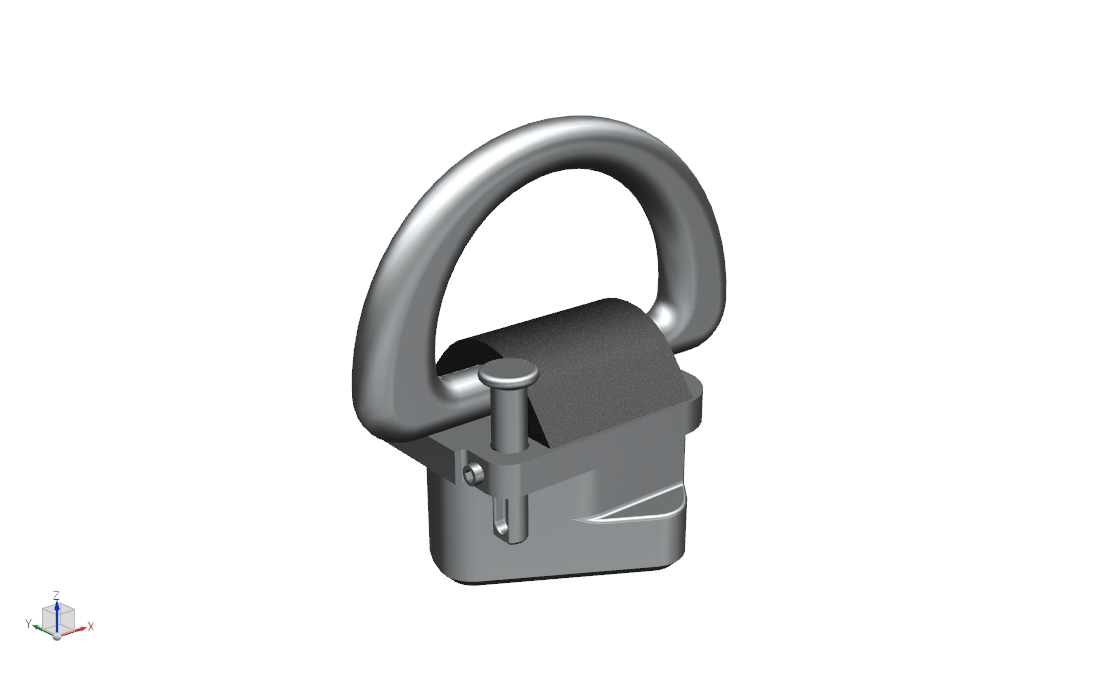

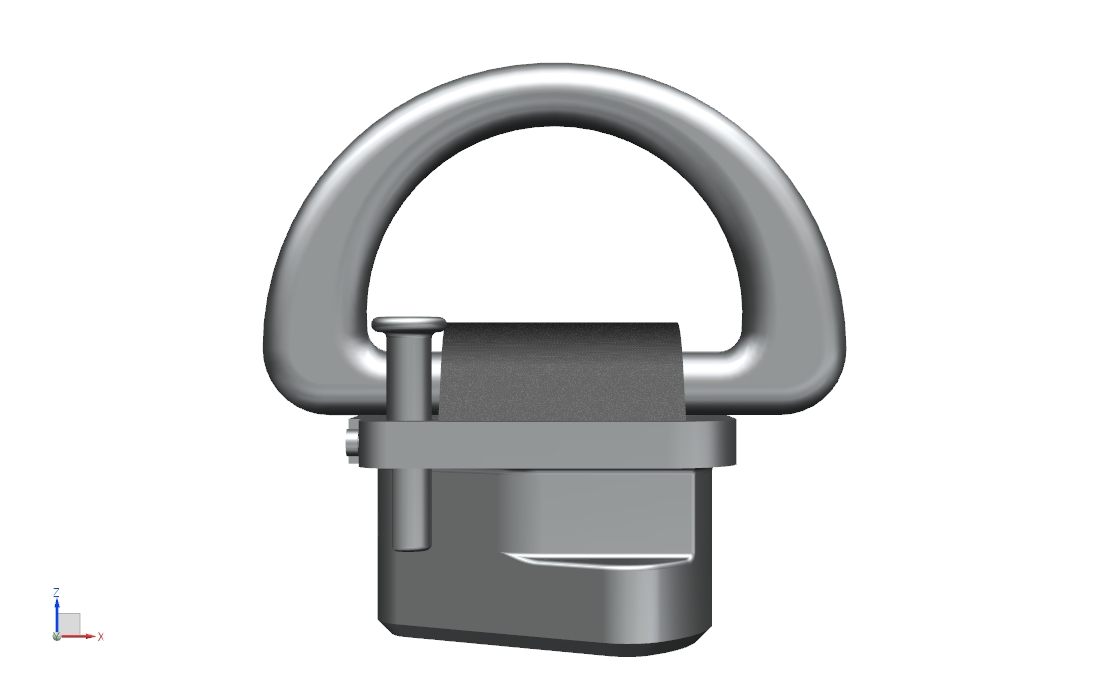

AL-L1/36t | Turnfoot D-Ring 36t | 360 | ![]() |
AL-L1/50t | Turnfoot D-Ring 50t | 500 | ![]() |

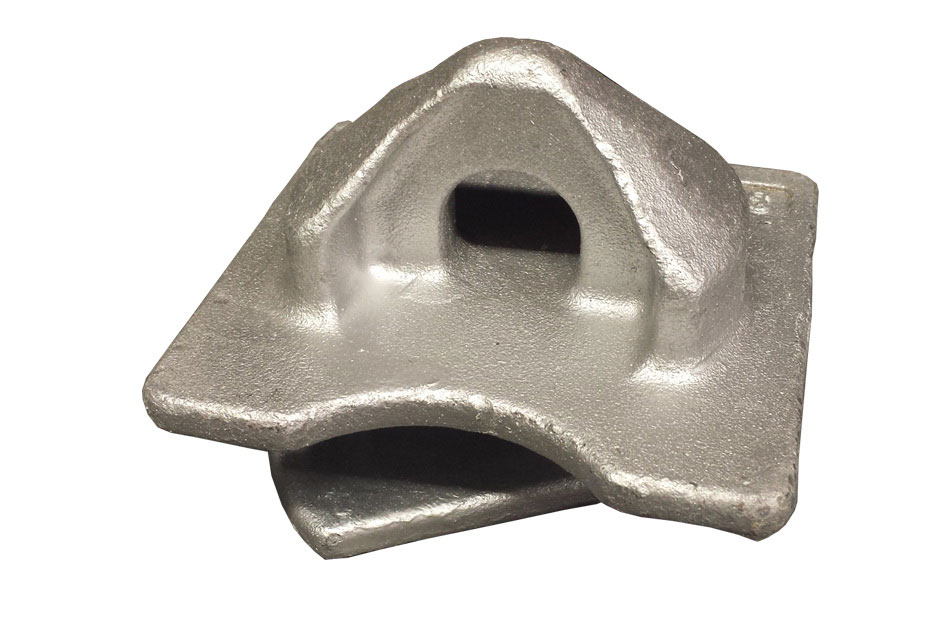

BC-G4 | Terminal Stacker (Depot stacker) | 500 | ![]() |

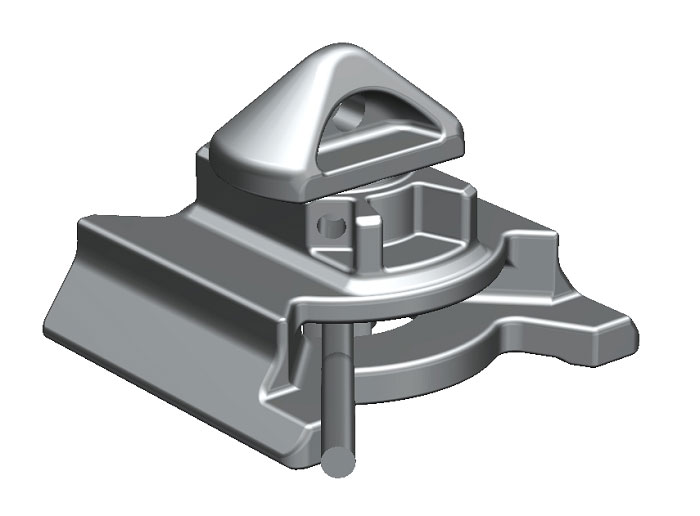

BD-D1/L-45 | Bottom twistlock 45°/L | 500 | ![]() |

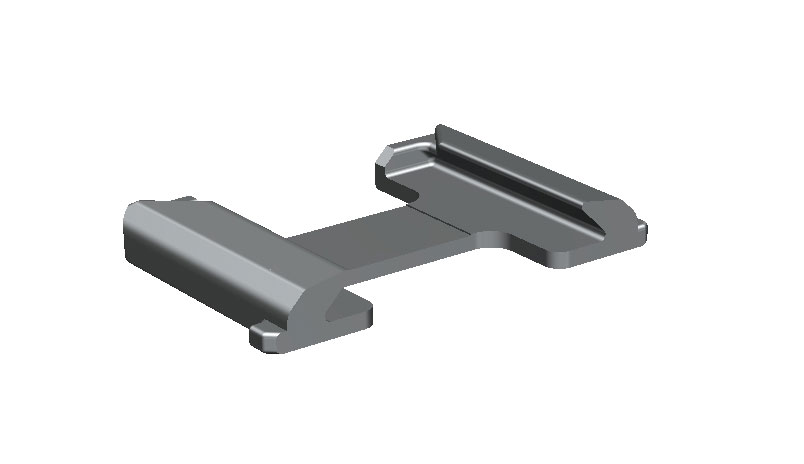

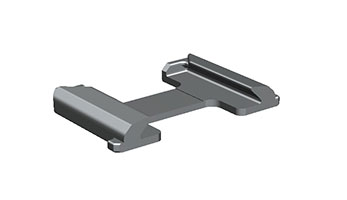

AE-A1 | Dovetail Foundation 45° | 500 | ![]() |
BD-E1/L-55 | Bottom twistlock 55°/L | 500 | ![]() |
AE-B1 | Dovetail Foundation 55° | 500 | ![]() |
Produkt nr. | Beskrivelse |

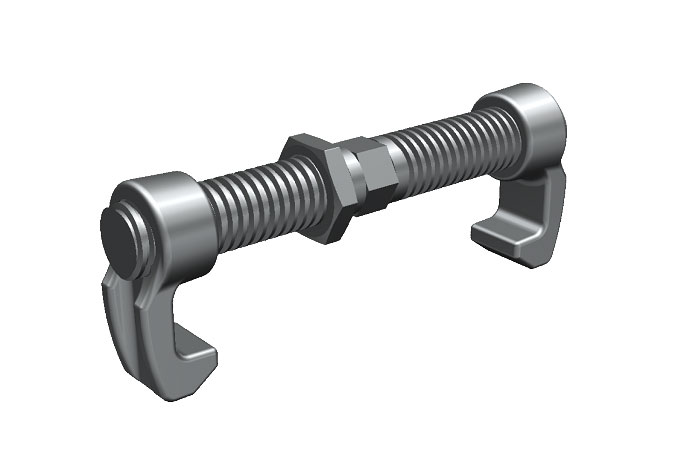

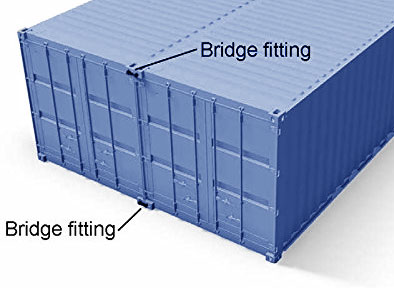

BE-A1/260 | Bridgefitting 260mm |

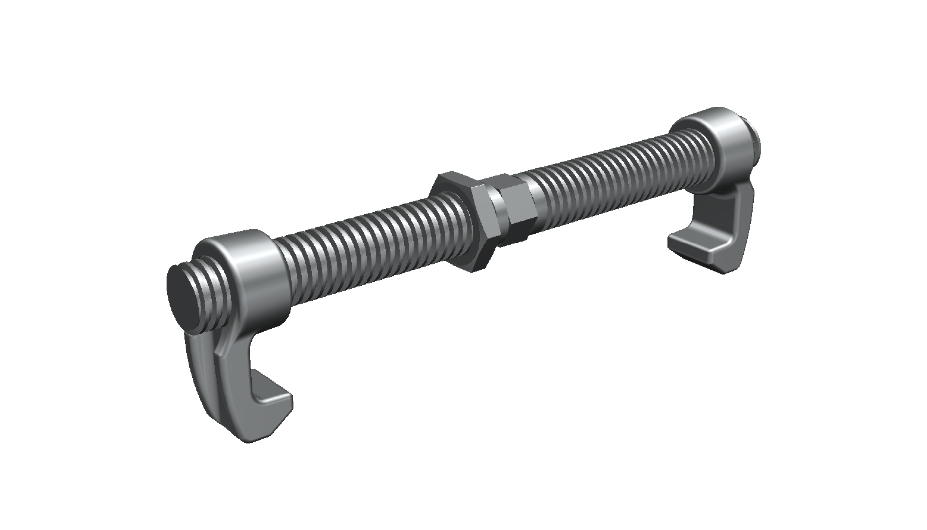

BE-A1/380 | Bridgefitting 380mm |

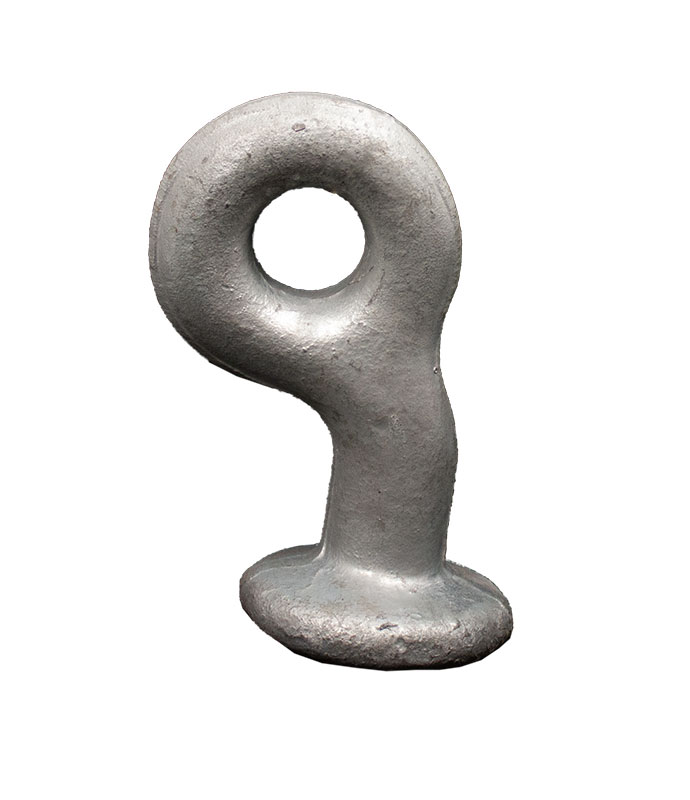

CT-H-20 | Elefant fot |

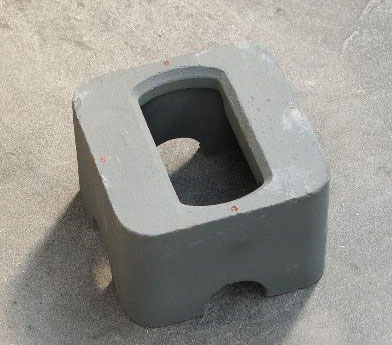

FR-71C | Raised ISO Deck socket |

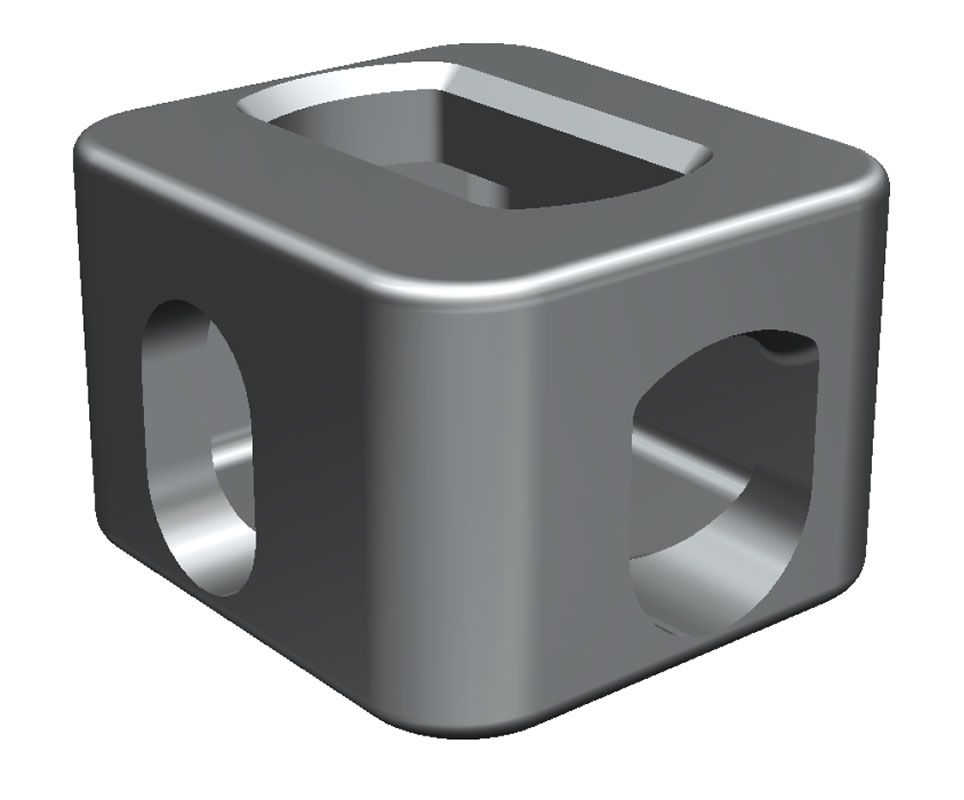

ISO-CC-B-L/R | ISO corner castings bottom L/R |

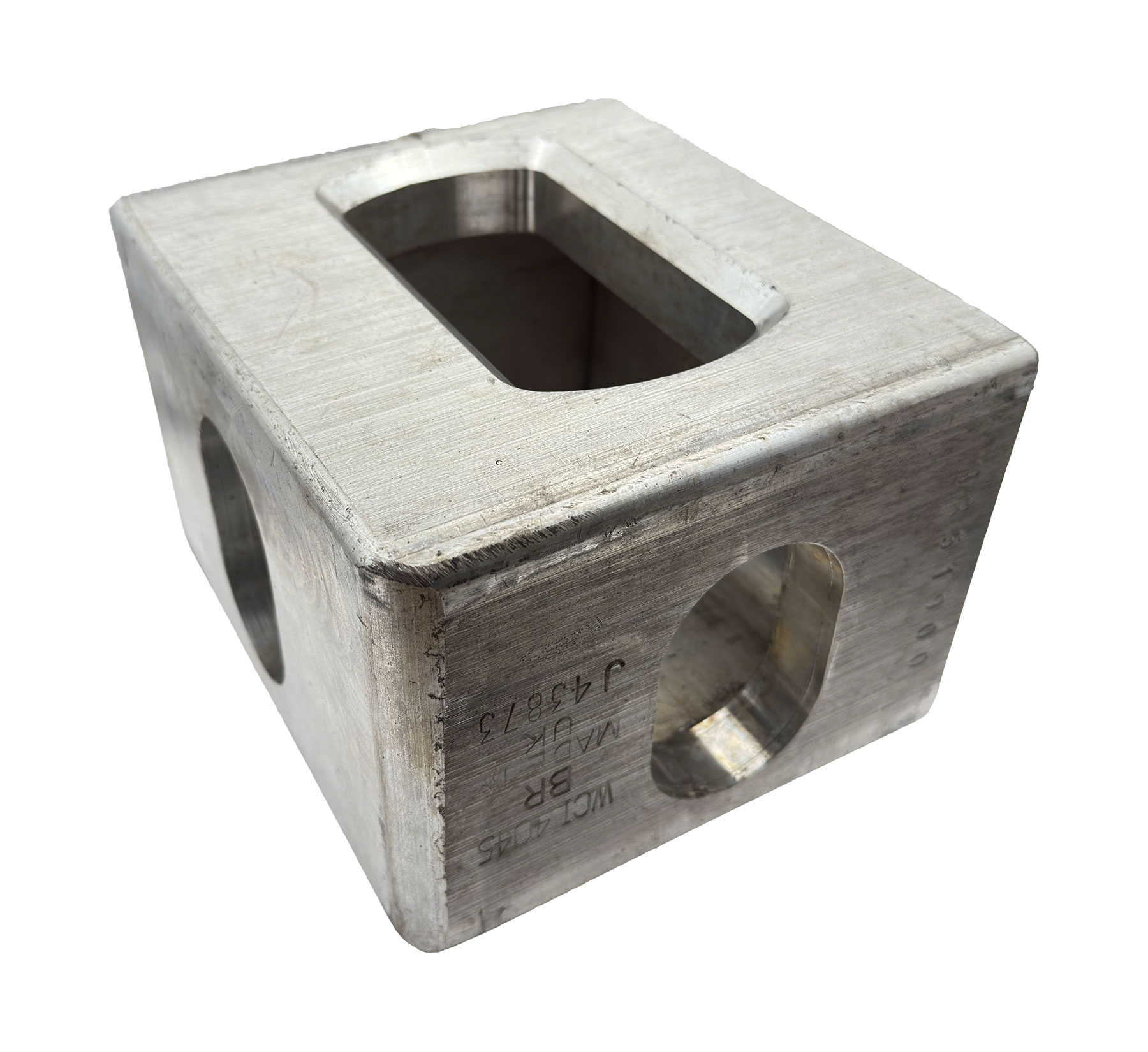

ISO-CCAlu-B/R | ISO corner castings bottom L/R Aluminium |
TB-P1 | Rubber Plug for ISO corner castings (dim. 123x75x28mm) |
